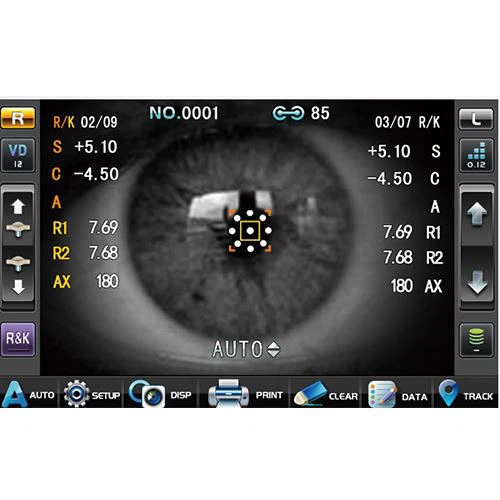

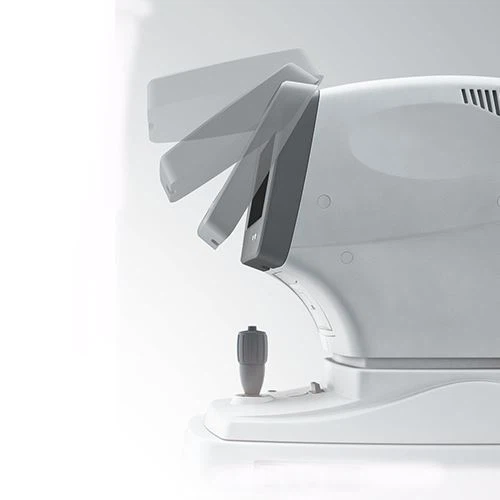

● 7" tilting LCD screen
Tilting screen function that allows wide variance of access.
● Auto focus function
Just move, it will automatically focus the eye and get the value.

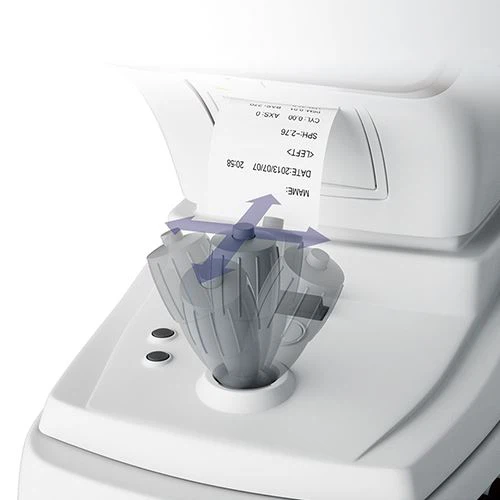

● Motorized joystick
A motorized joystick with auto vertical tracking mode is adopted, so operation is easier.
SPECIFICATIONS | |
Refractometer | |
Vertex distance | 0mm, 12mm, 13.75mm |
Spherical | -20~+20m-1 (VD=12) 0.12/0.25m-1Step |
Cylinder | -8~+8m-1 0.12/0.25m-1 Step |
Axis | 0~180° 1°Step |
Cylinder form | -, + , ± |
Pupil distance | 45~88mm, 1mm Step |
Min. pupil size | 2.0mm |
Keratometry | |
Radius of curvature | 5.0~10mm(increment:1mm) |
Corneal power | 33.75~67.50m-1 (when corner equivalent refractive index is 1.337) |
| (increment selectable from 0.12, 0.25m-1) | |
Corneal astigmatism | 0.0~8.00m-1 (increment selectable from 0.12,0.25m-1 ) |
Axis | 1~180°(increment:1°) |
Corneal diameter | 2.0~14.0mm(increment: 0.1mm) |
Others | |
Chart | Follow-up colorful fogging chart system |
Memory of data | 10 measure value for each right and left eye |
Display | 7″LCD/TFT |
Thermal printer | |
Power supply | 220V±10% 50Hz 60VA |
Dimension | 478mm×268mm×472mm, |
Weight | ~15.5kg |
